Double Weighing 4 Stations Carousel Packaging Machine (5-10 KG)
- Open mouth bags of polypropylene woven (PP) bags, paper, plastic, laminated, etc.
- Possibility of filling powder products into sacks fitted by the operator.
- Possibility of precise filling by working with different parameters in different products with recipe control.
- All screw conveyors motors have a driver controllers.
- Belt conveyor can be easily adjusted electrical to a height of 350-700 mm.
- The conveyor belt motors have a driver controller.
- Sewing machine was mounted on a mechanic stand of which height can be moved forward and backward.
- Thread consumption is minimized by optical sensors.
- Labour safety is provided via emergency stop button on bag filling unit due to which the operator of the device to be able to move comfortably.
- There is a digital capacitive sensor in the flour bunker.
| Packaged Product Type | Powder Products |
| Density | 0,55 g/cm³ |
| Weighing Accuracy | ±%0,3 |
| Top Bunker Capacity | 1,6 m³ |
| Platter Capacity | 0,11 m³ |
| System Pressure | 6-8 Bar |
| Power Supply | 380 V AC / 50-60 Hz |
| Electricity Consumption | 9 kW/h |
| Weight | 6000 Kg |
| Air Supply | 29,4 m³/h |
| Capacity | Max. 600 bags/h |
Similar products

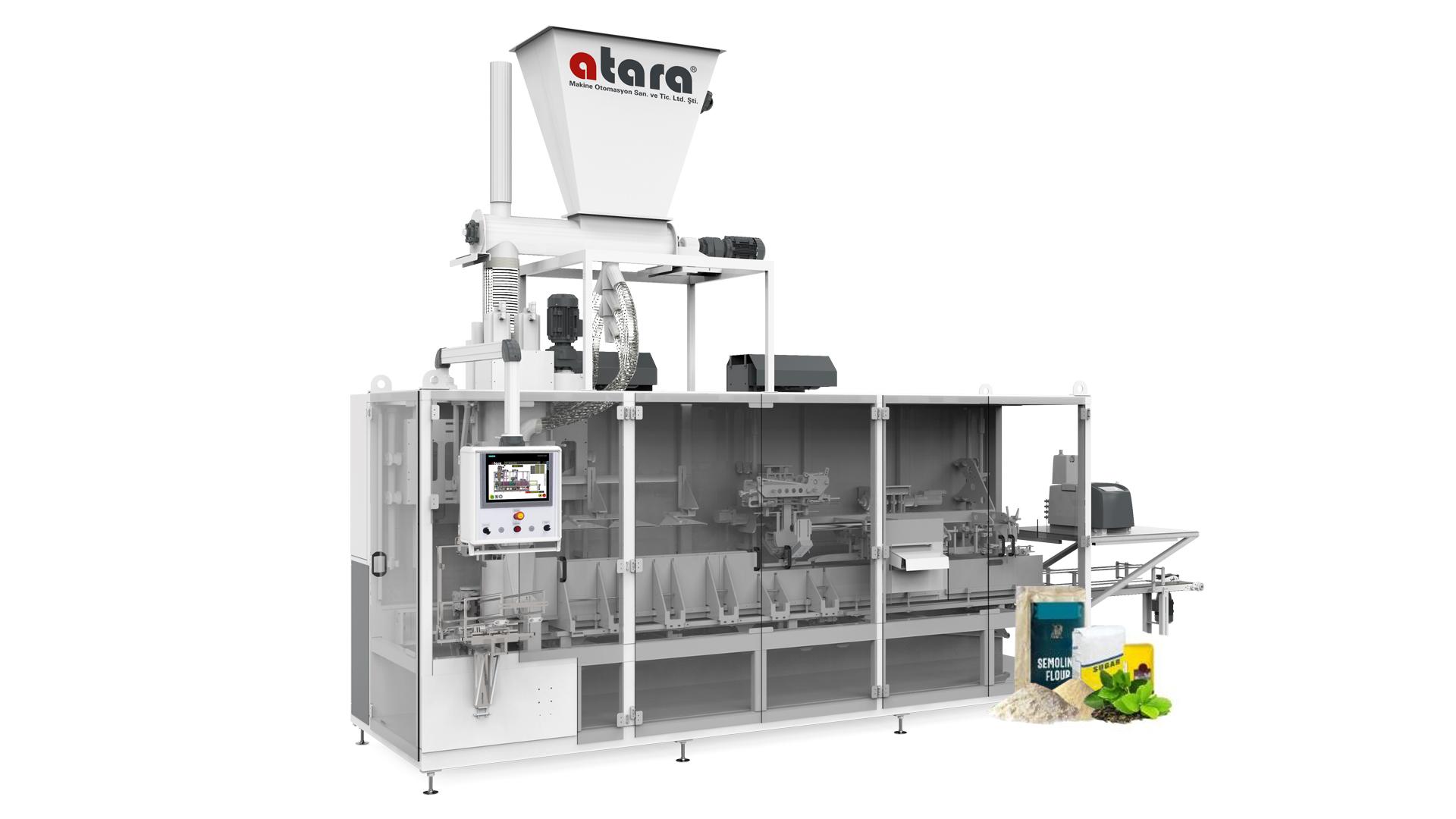

ATR-125-B Lineer Full Automatic Packaging Line (1-2-5 KG)
